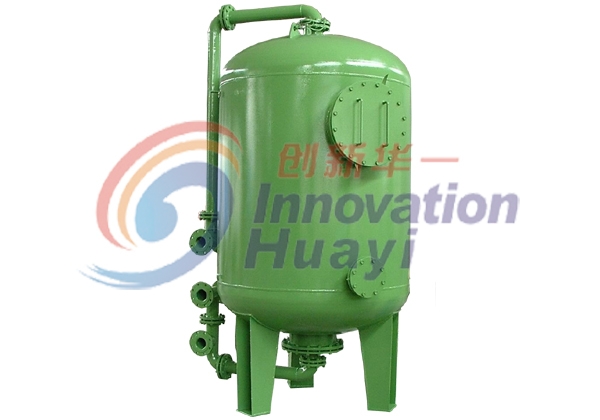

I. Overview:
This product is applied to the filtered water turbidity is generally less than 5 mg / l to meet the industrial and mining enterprises and towns of the industrial water or water of life of the drinking water quality standards for water treatment equipment. Suspended solids in industrial wastewater solids removal. Bonding colloid particles, the water contains suspended solids condensed flakes can not be removed by the precipitation method can be loaded filter layer of the water through a pressure filter, so that the water of transparency.
This product is divided into two kinds of water to choose:
Single-layer media filter is applied to water turbidity, often about 100 mg / L, raw water without coagulation and sedimentation (for example, often use the raw water turbidity higher shorten the operating cycle or filtration rate, attention should be lower ), such a filter should be used in the preceding Note added coagulant.
Dual-media filter water turbidity is generally below 15 mg / l, the maximum is not greater than 20 mg / l of precipitation water.
Second, the technical conditions and instructions:
Working pressure 5kgf/cm2
Inlet temperature of ≥ 4 ° C
The speed of 10m/min
Turbidity: water <20 mg / L effluent <5 mg / L
φ2400 more to be equipped with compressed air, to help red recoil.
Mechanical filter, removing iron and manganese removal filters, according to user requirements with a multi-channel valve.
This product is applied to the filtered water turbidity is generally less than 5 mg / l to meet the industrial and mining enterprises and towns of the industrial water or water of life of the drinking water quality standards for water treatment equipment. Suspended solids in industrial wastewater solids removal. Bonding colloid particles, the water contains suspended solids condensed flakes can not be removed by the precipitation method can be loaded filter layer of the water through a pressure filter, so that the water of transparency.
This product is divided into two kinds of water to choose:
Single-layer media filter is applied to water turbidity, often about 100 mg / L, raw water without coagulation and sedimentation (for example, often use the raw water turbidity higher shorten the operating cycle or filtration rate, attention should be lower ), such a filter should be used in the preceding Note added coagulant.
Dual-media filter water turbidity is generally below 15 mg / l, the maximum is not greater than 20 mg / l of precipitation water.
Second, the technical conditions and instructions:
Working pressure 5kgf/cm2
Inlet temperature of ≥ 4 ° C
The speed of 10m/min
Turbidity: water <20 mg / L effluent <5 mg / L
φ2400 more to be equipped with compressed air, to help red recoil.
Mechanical filter, removing iron and manganese removal filters, according to user requirements with a multi-channel valve.
|
外径 (mm)
|
过滤面积（m2）
|
出水(m3/h)
|
单层高（m）
|
双层高（m）
|
本体重(kg)
|
运行重(kg)
|
|
|
石英砂
|
白煤
|
||||||
|
1012
|
0.785
|
7.85
|
1.2
|
0.7
|
0.5
|
880
|
2638
|
|
1516
|
1.77
|
17.7
|
1.2
|
0.7
|
0.5
|
1506
|
5400
|
|
2016
|
3.14
|
31.4
|
1.2
|
0.7
|
0.5
|
2455
|
9450
|
|
2420
|
4.52
|
45.2
|
1.2
|
0.7
|
0.5
|
4179
|
14200
|
|
2524
|
4.91
|
49.1
|
1.2
|
0.7
|
0.5
|
4679
|
15790
|
|
3020
|
7.1
|
71
|
1.2
|
0.7
|
0.5
|
6355
|
23000
|
|
3224
|
8.1
|
81
|
1.2
|
0.7
|
0.5
|
7220
|
25000
|
