First, the product composition:
Feeding system, the reaction system, the control system, mixed-absorption systems, security systems
Second, the reaction principle:
△
NaCLO3 +2 HCL → CLO2 +1 / 2CL2 + NaCL + H2O
Use of raw materials: sodium chlorate (GB/T1618-1995 industrial grade product, the content of ≥ 99%);
Hydrochloric acid (GB320-93 industrial grade product, the concentration of ≥ 31%).
Third, the performance characteristics:
◆ The production of chlorine dioxide-based compound disinfectant, chlorine, supplemented by available chlorine meter CLO2 content
Greater than 75%.
◆ Raw material conveying flow meter dosing, simple operation, accurate feeding should not be blocked, stable operation.
◆ the equipment inside the hosts reactor with high temperature, imports of composite materials, corrosion resistance and long service life.
◆ Raw material conversion rate ≥ 85%, and low energy consumption.
◆ equipment, semi-automatic operation, no need to add a little raw manned.
◆ drums on the set, especially for the lower place in the water pressure.
Fourth, the consumption of raw materials:
Produce one gram of available chlorine consumption of sodium chlorate 0.65g, hydrochloric acid 1.3g, equivalent to 0.004 yuan.

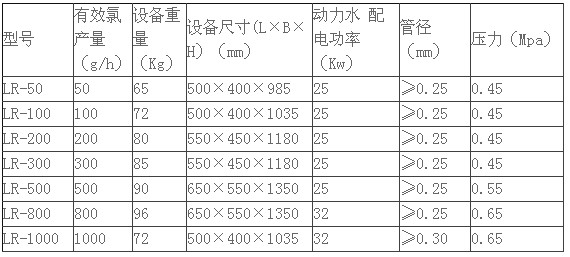

Five performance parameters:
Feeding system, the reaction system, the control system, mixed-absorption systems, security systems
Second, the reaction principle:
△
NaCLO3 +2 HCL → CLO2 +1 / 2CL2 + NaCL + H2O
Use of raw materials: sodium chlorate (GB/T1618-1995 industrial grade product, the content of ≥ 99%);
Hydrochloric acid (GB320-93 industrial grade product, the concentration of ≥ 31%).
Third, the performance characteristics:
◆ The production of chlorine dioxide-based compound disinfectant, chlorine, supplemented by available chlorine meter CLO2 content
Greater than 75%.
◆ Raw material conveying flow meter dosing, simple operation, accurate feeding should not be blocked, stable operation.
◆ the equipment inside the hosts reactor with high temperature, imports of composite materials, corrosion resistance and long service life.
◆ Raw material conversion rate ≥ 85%, and low energy consumption.
◆ equipment, semi-automatic operation, no need to add a little raw manned.
◆ drums on the set, especially for the lower place in the water pressure.
Fourth, the consumption of raw materials:
Produce one gram of available chlorine consumption of sodium chlorate 0.65g, hydrochloric acid 1.3g, equivalent to 0.004 yuan.
Five performance parameters:
