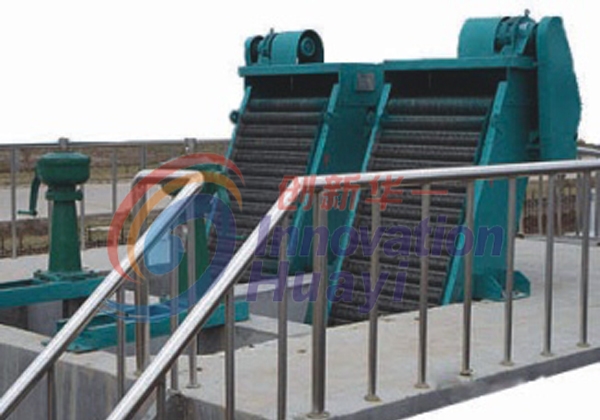

HXG type mechanical grate discharge machine (Trash machines) a continuous automatic intercept and clear the fluid shape of the debris in the water treatment equipment, is based on the solid-liquid separation for the purpose of device is present, China's most advanced one of the solid-liquid screening equipment widely used in municipal sewage treatment. The water industry, power plant intakes, but also can be used as a pre-screening equipment in the various industries in the wastewater treatment process. The mechanical grid products was completed in 1996 and 1999, by the State Environmental Protection Administration of the products identified.
Second, the equipment components:
The environmental protection equipment is mainly by the drive mechanism, chassis, transmission, tooth harrow chain traction, sprinkle slag institutions, electrical control system. Over water, lifting height, the solid-liquid separation of the total volume and the shape of the separation of substances, the particle size to select the gate gap. Material selection according to user needs as ABS plastic, nylon, stainless steel rake teeth; the main framework of stainless steel and carbon steel anti-corrosion.

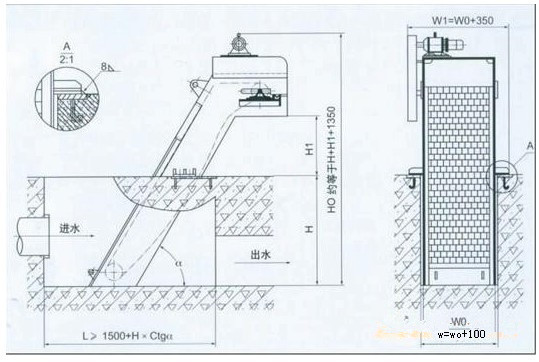

Sketch map:
HXG type mechanical grate discharge machine (Trash machines) a continuous automatic intercept and clear the fluid shape of the debris in the water treatment equipment, is based on the solid-liquid separation for the purpose of device is present, China's most advanced one of the solid-liquid screening equipment widely used in municipal sewage treatment. The water industry, power plant intakes, but also can be used as a pre-screening equipment in the various industries in the wastewater treatment process. The mechanical grid products was completed in 1996 and 1999, by the State Environmental Protection Administration of the products identified.
Second, the equipment components:
The environmental protection equipment is mainly by the drive mechanism, chassis, transmission, tooth harrow chain traction, sprinkle slag institutions, electrical control system. Over water, lifting height, the solid-liquid separation of the total volume and the shape of the separation of substances, the particle size to select the gate gap. Material selection according to user needs as ABS plastic, nylon, stainless steel rake teeth; the main framework of stainless steel and carbon steel anti-corrosion.
Sketch map:
Third, it works:
Motor, reducer drive mechanism installed in the rack the upper left or right, speed reducer output shaft sprocket, sprocket driven chain harrow active traction sprocket rotation, the role of the driven sprocket is tension chain harrow to install the rack tail traction rotation by a chain of tooth rake installed, thereby stimulating the tooth rake installed in between the two traction chain with the rotation, each rake teeth are inserted in the trash rack within the gap, will block the dirt rake to send to rack the upper limit position, the tooth rake with the chain for the rolls over, carried away the dirt on the tooth rake automatically fall into the junk car or other transportation facilities. Separate plastic sheet brush clean-up work on each row of the tooth harrow, thus, to complete a clean-up cycle.
Fourth, the technical parameters (for reference only, non-standard products, customized according to customers actual size)
Motor, reducer drive mechanism installed in the rack the upper left or right, speed reducer output shaft sprocket, sprocket driven chain harrow active traction sprocket rotation, the role of the driven sprocket is tension chain harrow to install the rack tail traction rotation by a chain of tooth rake installed, thereby stimulating the tooth rake installed in between the two traction chain with the rotation, each rake teeth are inserted in the trash rack within the gap, will block the dirt rake to send to rack the upper limit position, the tooth rake with the chain for the rolls over, carried away the dirt on the tooth rake automatically fall into the junk car or other transportation facilities. Separate plastic sheet brush clean-up work on each row of the tooth harrow, thus, to complete a clean-up cycle.
Fourth, the technical parameters (for reference only, non-standard products, customized according to customers actual size)
|
参数及尺寸\型号
|
HXG-300
|
HXG -600
|
HXG -800
|
HXG -1000
|
HXG -1200
|
|
安装角度
|
60-75
|
60-75
|
60-75
|
60-75
|
60-75
|
|
耙齿节距（mm)
|
100
|
100>
|
100
|
100
|
100
|
|
电机功率(kw)
|
0.75
|
0.75
|
1.1
|
1.1
|
2.2
|
|
过水流量(m³/h)
|
400
|
1125
|
3600
|
4500
|
6300
|
|
液体流速(m/s)
|
>3
|
>0.5
|
>1
|
>1
|
>1
|
|
有效宽度K1（mm)
|
300
|
500
|
800
|
1000
|
1200
|
|
安装宽度K2（mm)
|
460
|
560
|
960
|
1160
|
1360
|
|
水槽宽度K3（mm)
|
560
|
750
|
1050
|
1250
|
1450
|
|
设备总宽k4（mm)
|
880
|
1080
|
1380
|
1580
|
1780
|
|
水槽深度 H
|
1000-8000
|
1000-8000
|
1000-8000
|
1000-8000
|
1000-8000
|
5, the device features:
1, the device's biggest advantage is the high degree of automation, high separation efficiency, power consumption, no noise, good corrosion resistance.
Unattended to ensure continuous and stable work, set the overload protection device to produce sound and light alarm and automatic shutdown in the event of equipment malfunction, when the equipment is overloaded with work.
This equipment users need to be adjusted equipment operation interval to achieve periodic operation; grill level difference before and after the automatic control; and manual control functions, to facilitate maintenance. Users according to different jobs need to be arbitrarily chosen.
4, the rational design of the device structure, the device work, itself has a strong self-purification capacity, not to plug, so routine maintenance workload.
Sixth, the scope of application:
(1) applied to the urban sewage treatment, water industry, power plant intakes;
Two. Water supply and drainage pumping stations, intakes fine grid, remove smaller suspended solids;
3. Textile, printing and dyeing, food processing, slaughtering, tanning, paper and other industrial waste water solid-liquid separation;
4. Other industry in the processing of solid-liquid separation.
1, the device's biggest advantage is the high degree of automation, high separation efficiency, power consumption, no noise, good corrosion resistance.
Unattended to ensure continuous and stable work, set the overload protection device to produce sound and light alarm and automatic shutdown in the event of equipment malfunction, when the equipment is overloaded with work.
This equipment users need to be adjusted equipment operation interval to achieve periodic operation; grill level difference before and after the automatic control; and manual control functions, to facilitate maintenance. Users according to different jobs need to be arbitrarily chosen.
4, the rational design of the device structure, the device work, itself has a strong self-purification capacity, not to plug, so routine maintenance workload.
Sixth, the scope of application:
(1) applied to the urban sewage treatment, water industry, power plant intakes;
Two. Water supply and drainage pumping stations, intakes fine grid, remove smaller suspended solids;
3. Textile, printing and dyeing, food processing, slaughtering, tanning, paper and other industrial waste water solid-liquid separation;
4. Other industry in the processing of solid-liquid separation.
