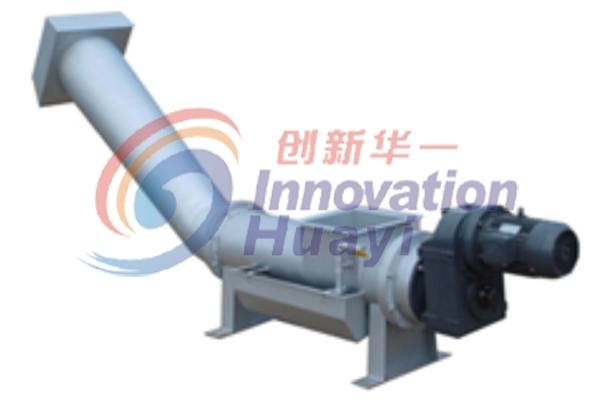

SLY-type screw press dehydration gate residue compression. Run-time, non-clogging routine maintenance workload is very small. Presses the screw blade push the material to the discharge port pipeline compression, discharge port height determined according to user needs. With treatment hole in the body, and set the sink, squeeze the water can be discharged through a pipe. In the feed zone, squeezing the water district has a flushing system, the discharge of garbage debris will not pollute the environment again. Usually associated with the grille, conveyors and other ancillary equipment, the implementation of the control linkage. Uses SLY screw press is widely used in water treatment industry, mainly used in solid-liquid separator in the grille gate slag, debris compression.
Second, use
Screw press machine equipment for the grill, fish grill machine dirt through the machine squeeze to reduce its moisture and volume,
Third, the characteristics of
Simple structure, small footprint, easy installation and maintenance; In addition to the expected out open, the rest can be stamped with closed, the material does not leak out, reducing air pollution.
IV., Construction
Screw press by the composition of the extruded helical, spiral, transmission parts, feed hopper, discharge hopper. Dirt into the hopper into the spiral, the role of the extruded helical, compression, dehydration after transported to the slag door.
Five works
Drive reducer drive the blade axis, the helix angle to produce forward thrust in order to squeeze into the squeeze tube materials after extrusion of material from the discharge port and into the gutters, while the separation of waste water is to achieve the purpose of separation.
Six, model, and technical parameters
型号
|
螺旋直径(mm)
|
出渣处理量(mm)
|
电机功率(kw)
|
转速(r/min)
|
渣出料含水率(%)
|
SLY-250
|
200
|
2-3
|
1.5
|
7
|
50-60
|
SLY-300
|
300
|
2-3
|
2.2
|
||
SLY-350
|
350
|
3-5
|
3
|
||
SLY-400
|
400
|
7-9
|
4
|
