I. Overview:
Vacuum rubber belt filter is developed in the mobile belt filter based on a state-of-the-art extraction equipment, it is a used for the separation of the solid - liquid two-phase combination of the rapid filtration of suspended solids and dehydration efficient separation equipment. It is widely used in the industrial sectors of mining, metallurgical, pharmaceutical, oil, coal, paper, electricity, environmental protection, detachable iron concentrate uranium invasion liquid pulp, gypsum, production resin, sewage treatment, its main feature is :
1, the extraction efficiency is high: the level of the filter surface and upper feeding, due to the pull of gravity, large particles, solid meet to settle to the bottom to form a layer of filter aid layer to reduce the clogging of the filter cloth, the filtration resistance, high extraction efficiency.
2, the structure is reasonable: the various components of the anti-corrosion materials, corrosion treatment, the main drive with the tape drive, vacuum tank with corrosion-resistant materials, long life.
3, the filter cake thickness can be adjusted, the moisture content is small, removable and convenient: cake thickness can be adjustable according to the material needs.
Cloth while cleaning the pros and cons: pros and cons of cloth with water jet cleaning device, thus eliminating the clogging of the filter cloth, extending the service life of the filter cloth.
5, flexible operation and maintenance costs low: in the production process, the cake thickness, wash water, vacuum and cycle time and so freely adjusted to obtain the best filtering effect. The cloth can work under harsh conditions and long life, and thus maintenance costs, production costs are greatly reduced.

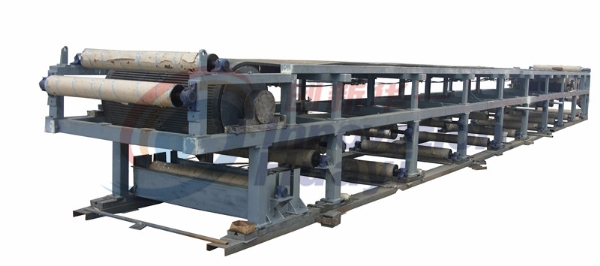

Second, the structural features:
About the points of this machine, phone (standing on the cake discharge end facing the body, drive on the left is on your left, and vice versa for the right phone), the main rack, the discharge device, the main drive roller and passive roller washing device, up tight device, detuning device, automatic drain cans, rubber bands, cloth composed rack with mesh belt limit rollers and correction devices, intended to ensure that the network with the extent permitted by movement and deviation adjustment. Cloth at the same time features of offset correction device and the tension device. Advanced aircraft structure, the use of high strength rubber band and cloth with both in the machine ring filter strip for conveyor belt feed device moving filter cloth to bring work material formed in a vacuum under the action of cake, followed by filtration, washing, dewatering, cake discharge filter with washing to complete the cycle. The structure is characterized constitute a movement sealed vacuum box and filter with a filter with a vacuum box on the mobile, mobile it overcome every movement of the mobile belt once should relieved vacuum, energy consumption is insufficient to achieve continuous filtration, the filter of the production process, washing, dewatering, cake discharge and cloth washing with cloth movement in turn, in order to improve filtration efficiency.
Third, the technical parameters:
Vacuum rubber belt filter is developed in the mobile belt filter based on a state-of-the-art extraction equipment, it is a used for the separation of the solid - liquid two-phase combination of the rapid filtration of suspended solids and dehydration efficient separation equipment. It is widely used in the industrial sectors of mining, metallurgical, pharmaceutical, oil, coal, paper, electricity, environmental protection, detachable iron concentrate uranium invasion liquid pulp, gypsum, production resin, sewage treatment, its main feature is :
1, the extraction efficiency is high: the level of the filter surface and upper feeding, due to the pull of gravity, large particles, solid meet to settle to the bottom to form a layer of filter aid layer to reduce the clogging of the filter cloth, the filtration resistance, high extraction efficiency.
2, the structure is reasonable: the various components of the anti-corrosion materials, corrosion treatment, the main drive with the tape drive, vacuum tank with corrosion-resistant materials, long life.
3, the filter cake thickness can be adjusted, the moisture content is small, removable and convenient: cake thickness can be adjustable according to the material needs.
Cloth while cleaning the pros and cons: pros and cons of cloth with water jet cleaning device, thus eliminating the clogging of the filter cloth, extending the service life of the filter cloth.
5, flexible operation and maintenance costs low: in the production process, the cake thickness, wash water, vacuum and cycle time and so freely adjusted to obtain the best filtering effect. The cloth can work under harsh conditions and long life, and thus maintenance costs, production costs are greatly reduced.
Second, the structural features:
About the points of this machine, phone (standing on the cake discharge end facing the body, drive on the left is on your left, and vice versa for the right phone), the main rack, the discharge device, the main drive roller and passive roller washing device, up tight device, detuning device, automatic drain cans, rubber bands, cloth composed rack with mesh belt limit rollers and correction devices, intended to ensure that the network with the extent permitted by movement and deviation adjustment. Cloth at the same time features of offset correction device and the tension device. Advanced aircraft structure, the use of high strength rubber band and cloth with both in the machine ring filter strip for conveyor belt feed device moving filter cloth to bring work material formed in a vacuum under the action of cake, followed by filtration, washing, dewatering, cake discharge filter with washing to complete the cycle. The structure is characterized constitute a movement sealed vacuum box and filter with a filter with a vacuum box on the mobile, mobile it overcome every movement of the mobile belt once should relieved vacuum, energy consumption is insufficient to achieve continuous filtration, the filter of the production process, washing, dewatering, cake discharge and cloth washing with cloth movement in turn, in order to improve filtration efficiency.
Third, the technical parameters:
|
型号
|
滤带宽度mm
|
过滤面积m2
|
滤带速度n/min
|
主动力KW
|
真空耗量m/min
|
滤机再生水耗水量L/min
|
真空度MPa
|
|
HGKJ1
|
400
|
1
|
0.5-5
|
0.75
|
2
|
20-40
|
0.053
|
|
HGKJ5
|
1300
|
5
|
4.0
|
10
|
60-80
|
||
|
HGKJ7
|
7
|
14
|
|||||
|
HGKJ9
|
9
|
5.5
|
18
|
||||
|
HGKJ11
|
11
|
22
|
|||||
|
HGKJ13
|
13
|
26
|
|||||
|
HGKJ15
|
15
|
7.5
|
30
|
||||
|
HGKJ17
|
17
|
34
|
|||||
|
HGKJ20
|
2000
|
20
|
11
|
40
|
|||
|
HGKJ24
|
24
|
50
|
100-120
|
||||
|
HGKJ30
|
2100
|
30
|
15
|
60
|

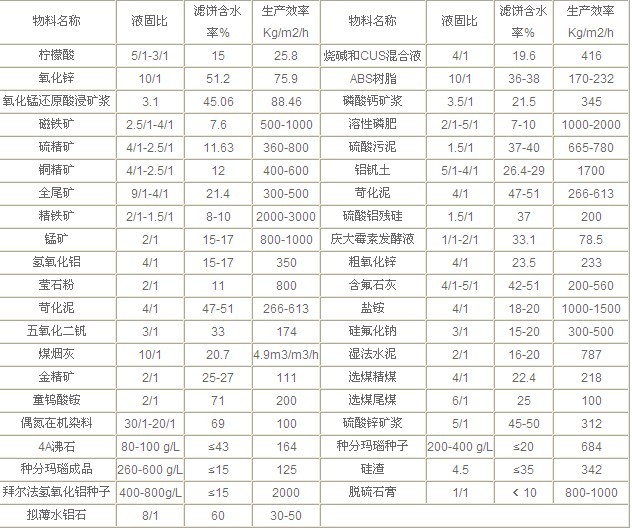

Fourth, the application instance table:
