First, an overview

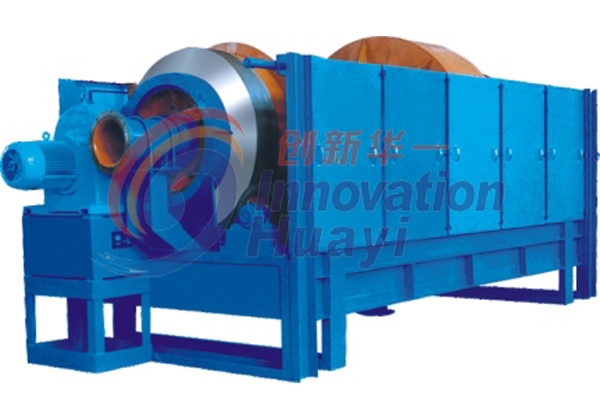

This device is a coarse filter in the waste paper recycling production line equipment, set at a high concentration of hydro pulper, out of the waste from the high concentration Hydrapulper Pulp coarse screening to remove large, heavy debris, reduce the burden of screening equipment in the back flow, in order to facilitate a period of screening. Second, the main technical parameters
Third, the structure
This equipment mainly consists of the following components: Transmission parts: mainly by the size of the gear motor planetary cycloid reducer. The large gear connected to the sieve drum to drive the screen drum rotation. Drum sieve: a round screen, mainly by the left and right sides and the middle slot, roller and positioning of supporting wheel. Import and export side of the bearing: 8 to bolts fixed to the ground. Slurry into the tube: the slurry into the tube, into the composition of slurry nozzle, the slurry into the tube to install a gate valve, in order to adjust the slurry into the volume. Occasional round: two groups by the import and export side of the supporting roller composition of the slag side of the supporting roller positioning role. Occasional round each a total of two components. Supporting roller system including the axis, Bearing, prop the wheel support, etc.. Water pipe water pipe: two, two cut-off valve Z15T10 G1 3/4 ", the composition of the G1 / 4" water pipe bracket. 7 reducer bearings: the four bolts on the ground. The slurry pipe bracket: supporting slurry pipe, connected with bolts and tank bracket. Fourth, the instructions for use A water spray of the water pipe system can be adjusted. Out of the concentration of In operation, must have a certain amount of water spray to clean the side of the screen drum in the external cleaning, the two sides of the inside of the sieve drum washing debris to prevent miscellaneous Material with good pulp in the sieve of bulge residue. 3 out of waste paper pulp from the high concentration Hydrapulper, according to the requirements of the back flow concentration, the slurry into the dilution, if the back with the highest concentration deslagging , Often cylindrical screen into the slurry concentration was diluted to about 5%. Into the slurry concentration is too high and not conducive to the screening of the slurry, debris removed, the plasma concentration is Control in 2 to 4 percent. In order to facilitate cylinder screen screened waste paper pulp screening, before the waste paper into the high-concentration pulper must be manually selected, Remove large debris. Bearing bearing lubricant using calcium-based lubricant (GB491-65) Code ZG-1, gear lubrication of industrial gear oil (SY1172-80). Fifth, wearing parts
Sixth, after-sales service
Free installation guide, responsible for commissioning. |
