Enrichment equipment

Enrichment equipment

Your Current Location ： Home Products Enrichment equipment
The belt filter press is to introduce advanced technology from Germany by the digestion and absorption, the successful development of a water treatment equipment, continuous pressure filtration of large amounts of sludge, the product uses high-strength materials, with a large capacity, high dewatering efficiency, the use of long life and so widely used in the management of various sectors of the ring, long life bearing its configuration, while using high-quality filter with fully ensure the performance and quality of the filter press.
First, the working principle of belt filter press is divided into three steps to carry out the functions of filtration and dehydration:
 A gravity dewatering area wastewater treatment plant sludge by the pump into the sludge mixing tank with polymer flocculant (polymer) mixing the sludge in the small suspension-like particles by polymer flocculant bridge formation of larger particles of the latex (floc) like, and then to a gravity flow to the top by the stirred tank overflow into subsequent dewatering operations.
2, the pressure dehydration District sludge the gravity dehydration District into the pressure dehydration, upper and lower cloth began to squeeze and sludge dewatering.
3, pressurized sludge dewatering district with the cloth move into the pressure dewatering zone, six were vertical like the wheel, according to the wheel diameter by the large and gradually smaller, gradually increasing pressure from a small configuration, with the upper and lower filter cloth between the wheel to transform the upper and lower positions on the sludge generated shear stress, floc mud capillary bound water (capillary water) squeeze out, to produce a drier sludge cake.
Second, the advantage
1, automatic control, continuous.
2, low energy consumption, long service life.
3, dehydration, high efficiency, mud cake solid rate.
4, easy to manage, easy maintenance.
5, low noise, less chemicals.
6, economical and reliable, and a wide range of applications.
Performance scientific design and reasonable layout, to ensure that the filter press with high dewatering performance, the dehydration of the pressure roller is a hole design, not only the processing power increase, and the sludge on both sides simultaneously dehydration. both sides of the filter with rapid dehydration in a filter press process and shorten the drying time, behind the smaller the pressure roller arrangement and filter with a contact angle change to ensure that the best combination of pressure and shear forces, thus greatly improving the cake solid content and dewatering efficiency.
Fourth, the characteristics of the filter belt tension by inflatable cylinder, so that the entire filter with maintaining a constant tension, and not due to changes in feed rate caused by changes in tension to facilitate the operation and management, filter press with automatic detection filter with compressed air control system for the location and auto-correction on the pressure roller to ensure a balanced sludge into the filter belt, thereby enhancing the filtration efficiency and extended filter with wide filter belt filter press feed device comes with automatic sludge life expectancy. , Structural belt filter press with two filter prior to the normal pressure dehydration, there is a longer gravity dehydration, the unique structure not only improves the efficiency of dehydration, reduced chemicals, and significantly reducing power consumption.
6, the Operating Procedures
1, the preparatory work
a Please read this manual thoroughly and understanding described in the operating procedures and methods to skilled operation dehydration and its assembly components.
b, check the belt filter press and its components in good condition, and confirmed that no other debris left in the cloth and rollers.
c, check the reducer oil level.
d, check the filter cloth location is correct.
e, check the scraper and the cloth of appropriate exposure.
f, check the upper and lower cloth tension is appropriate, and adjusted for proper tension.
g, check the air compressor and adjust the air pressure.
2, begin work
start the air compressor air tank control valve, the pressurized air into the pressure control unit.
b, adjust the air pressure to set the tension of the cloth, pre-adjustment, pay attention to the tension telescopic frame can not hit the rack.
hand slightly offset sensing device of moving cloth, to view the cylinder will operate normally, In addition, test emergency stop switch function is normal.
d start the filter cloth washing pump, and view the water pump and water pressure to meet the requirements (water pressure: 4kg/cm2).
e, and then start the belt filter press and check whether all devices are functioning normally.
f start the sludge supply pump.
g, if the cloth offset can not return to normal position, immediately stop operation.
h Remember that if the tension on the cloth not properly maintained, cloth offset control system may not be able to perform its functions.
3, stop working
a close the sludge supply pump.
b, then let the belt filter press operation for at least 20 minutes, the operation of the belt filter press, filter cloth washing pump and sludge transportation device should also continue to maintain the operation, until the residual sludge from the belt pressure filter machine and wash cloth.
c, and then determine the sludge cake is completely out of the belt filter press, belt filter press cloth and rollers are cleaned, then turn off the washing pump and sewage cake delivery devices. Note: When operation stops for a longer period of time not to operate the belt filter press and filter cloth tension, then relax. (Before the reboot operation, do not forget to adjust the tension of a good cloth)
Fourth, the technical parameters
型  号
SW1000
SW1500
SW2000
SW3000
功率KW
传动电机
0.75
1.5
1.5
2.2
压缩空气
0.75
0.75
0.75
0.75
带宽
1000
1500
2000
3000
处理量（m3/h）
3-4
4-6
6-8
9-12
进浆浓度
8-12%
出浆浓度
30-40%

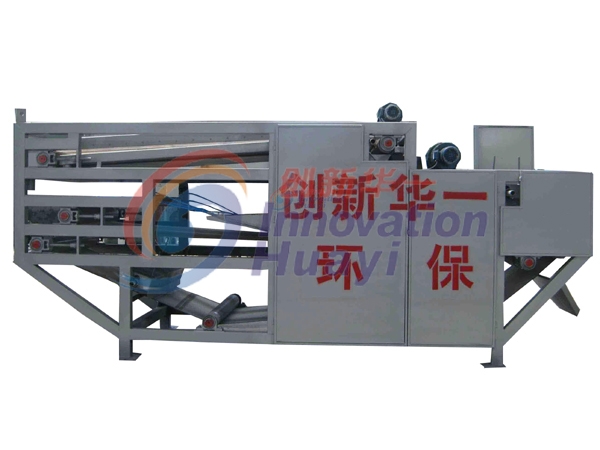

Name：SW belt filter press

Product Description:带式压滤机是从德国引进技术，经消化吸收，开发成功的一种水处理设备，可以连续压滤大量的污泥，产品采用高强度材料制作，具有处理能力大，脱水效率高，使用寿命长等特点，广泛用于各行业的环理中，其配置的轴承使用寿命长，同时采用高品质的滤带，完全确保压滤机的性能和品质。

Details
The belt filter press is to introduce advanced technology from Germany by the digestion and absorption, the successful development of a water treatment equipment, continuous pressure filtration of large amounts of sludge, the product uses high-strength materials, with a large capacity, high dewatering efficiency, the use of long life and so widely used in the management of various sectors of the ring, long life bearing its configuration, while using high-quality filter with fully ensure the performance and quality of the filter press.
First, the working principle of belt filter press is divided into three steps to carry out the functions of filtration and dehydration:
 A gravity dewatering area wastewater treatment plant sludge by the pump into the sludge mixing tank with polymer flocculant (polymer) mixing the sludge in the small suspension-like particles by polymer flocculant bridge formation of larger particles of the latex (floc) like, and then to a gravity flow to the top by the stirred tank overflow into subsequent dewatering operations.
2, the pressure dehydration District sludge the gravity dehydration District into the pressure dehydration, upper and lower cloth began to squeeze and sludge dewatering.
3, pressurized sludge dewatering district with the cloth move into the pressure dewatering zone, six were vertical like the wheel, according to the wheel diameter by the large and gradually smaller, gradually increasing pressure from a small configuration, with the upper and lower filter cloth between the wheel to transform the upper and lower positions on the sludge generated shear stress, floc mud capillary bound water (capillary water) squeeze out, to produce a drier sludge cake.
Second, the advantage
1, automatic control, continuous.
2, low energy consumption, long service life.
3, dehydration, high efficiency, mud cake solid rate.
4, easy to manage, easy maintenance.
5, low noise, less chemicals.
6, economical and reliable, and a wide range of applications.
Performance scientific design and reasonable layout, to ensure that the filter press with high dewatering performance, the dehydration of the pressure roller is a hole design, not only the processing power increase, and the sludge on both sides simultaneously dehydration. both sides of the filter with rapid dehydration in a filter press process and shorten the drying time, behind the smaller the pressure roller arrangement and filter with a contact angle change to ensure that the best combination of pressure and shear forces, thus greatly improving the cake solid content and dewatering efficiency.
Fourth, the characteristics of the filter belt tension by inflatable cylinder, so that the entire filter with maintaining a constant tension, and not due to changes in feed rate caused by changes in tension to facilitate the operation and management, filter press with automatic detection filter with compressed air control system for the location and auto-correction on the pressure roller to ensure a balanced sludge into the filter belt, thereby enhancing the filtration efficiency and extended filter with wide filter belt filter press feed device comes with automatic sludge life expectancy. , Structural belt filter press with two filter prior to the normal pressure dehydration, there is a longer gravity dehydration, the unique structure not only improves the efficiency of dehydration, reduced chemicals, and significantly reducing power consumption.
6, the Operating Procedures
1, the preparatory work
a Please read this manual thoroughly and understanding described in the operating procedures and methods to skilled operation dehydration and its assembly components.
b, check the belt filter press and its components in good condition, and confirmed that no other debris left in the cloth and rollers.
c, check the reducer oil level.
d, check the filter cloth location is correct.
e, check the scraper and the cloth of appropriate exposure.
f, check the upper and lower cloth tension is appropriate, and adjusted for proper tension.
g, check the air compressor and adjust the air pressure.
2, begin work
start the air compressor air tank control valve, the pressurized air into the pressure control unit.
b, adjust the air pressure to set the tension of the cloth, pre-adjustment, pay attention to the tension telescopic frame can not hit the rack.
hand slightly offset sensing device of moving cloth, to view the cylinder will operate normally, In addition, test emergency stop switch function is normal.
d start the filter cloth washing pump, and view the water pump and water pressure to meet the requirements (water pressure: 4kg/cm2).
e, and then start the belt filter press and check whether all devices are functioning normally.
f start the sludge supply pump.
g, if the cloth offset can not return to normal position, immediately stop operation.
h Remember that if the tension on the cloth not properly maintained, cloth offset control system may not be able to perform its functions.
3, stop working
a close the sludge supply pump.
b, then let the belt filter press operation for at least 20 minutes, the operation of the belt filter press, filter cloth washing pump and sludge transportation device should also continue to maintain the operation, until the residual sludge from the belt pressure filter machine and wash cloth.
c, and then determine the sludge cake is completely out of the belt filter press, belt filter press cloth and rollers are cleaned, then turn off the washing pump and sewage cake delivery devices. Note: When operation stops for a longer period of time not to operate the belt filter press and filter cloth tension, then relax. (Before the reboot operation, do not forget to adjust the tension of a good cloth)
Fourth, the technical parameters
型  号
SW1000
SW1500
SW2000
SW3000
功率KW
传动电机
0.75
1.5
1.5
2.2
压缩空气
0.75
0.75
0.75
0.75
带宽
1000
1500
2000
3000
处理量（m3/h）
3-4
4-6
6-8
9-12
进浆浓度
8-12%
出浆浓度
30-40%
