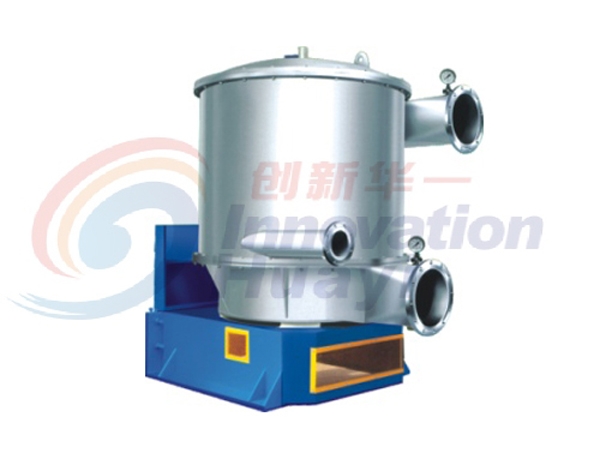

CXN series flow pressure screen is mainly used for screening in front of the machine of the pulp and paper industry, can also be used as the screening of the pulping system. With high screening efficiency, volume, pulse low, long life, compact structure, easy maintenance.
|
型号
|
CXN0.6
|
CXN1
|
CXN1.2
|
CXN2
|
CXN3
|
|
筛选面积(m²)
|
0.6
|
1
|
1.2
|
2
|
3
|
|
筛孔范围(mm)
|
ø1-ø2
|
||||
|
筛缝范围(mm)
|
H0.25-0.55
|
||||
|
进浆压力(MPa)
|
0.1-0.25
|
||||
|
进出浆压差(MPa)
|
0.01-0.04
|
||||
|
筛选浓度（%）
|
0.3-0.8
|
||||
|
生产能力(t/d)
|
10-40
|
20-60
|
30-90
|
40-200
|
60-400
|
|
电机功率(kw)
|
18.5-22
|
30
|
30-37
|
37-45
|
45-75
|
