First, an overview
With China's rapid economic development, people's living standards continued to improve, people have become increasingly demanding of the quality of life and living environment; rapid development consumes a lot of resources, resulting in a large number of waste, the threat to people quality of life of life, the development of economic pollution control, has become the consensus of modern society, the CPC Central Committee and State Council made a timely manner to the path of sustainable development, national development strategies to create a harmonious society, more pointed in the direction of the work for us. As the paper industry, cleaner production, waste water treatment has become a trend in the international arena, will also become a trend in the country, is the paper industry the bounden duty of.
Paper wastewater treatment technology and processing cost reasons, has been plagued by pulp and paper, making it a paper mill to have a heavy burden to design an efficient sewage treatment facilities has become a common paper industry and mechanical industry desire, my company in a timely manner with the international advanced sewage treatment technology, combined with the experience of many years wastewater treatment, design and development ZSF series of super-dissolved air flotation wastewater treatment equipment and technology, completely solve the problem of the paper mill wastewater treatment many paper mills use to prove the technical operations reliable, good water quality, processing cost, easy to operate, easy to master, by the use of home recognition and widespread praise.
CXX series of super-dissolved air flotation wastewater treatment equipment, application of new dissolved air mechanism, design new and unique system of dissolved gas, its excellent operating performance excellence in the treatment effect has been fully reflected in the industrial wastewater treatment.

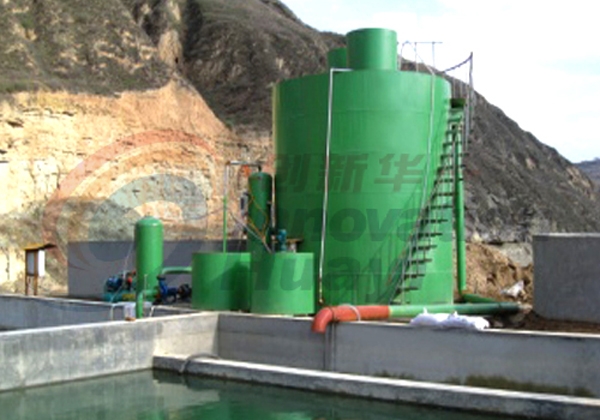

Second, the structure and principles
Sewage processor CXX series of super-dissolved air flotation for the steel structure and its working principle is: the air pressure through the pump into the melting tank, under 0.5Mpa pressure is forced to dissolve in water, in the case of a sudden release, dissolved in The air in the water precipitates to form a float to close micro-bubbles rise slowly adsorbed on suspended solids density decreased to achieve the purpose of removal of SS and CODcr.
CXX series of super-dissolved air flotation wastewater processor structure from top to bottom consists of the following components:
A flotation machine:
Circular steel structure, is the main core of the water treatment machines. Internal release, uniform, sludge pipe, outlet pipe, sludge tanks, scraper and drive system. Release placed in the central location of the flotation machines, the key components to produce micro-bubbles and dissolved gas cylinders to the dissolved gas and water well mixed with the waste water in here, suddenly released, resulting in severe agitation and vortex to form a diameter of about 20-80um micro-bubbles, which is attached to the floc in the wastewater, thereby reducing the proportion of the rise of the floc, water thoroughly separated, both cloth the Cheng cone of structure, connected to the release on the main role is to separate the clean water evenly spread and the sludge in the tank, the outlet pipe are distributed in the tank the lower part, and through a vertical pipe connected to the tank the upper overflow, overflow export level adjustable handle, easy to adjust the tank water level, sludge pipe installed in the tank the bottom for the discharge of sediment, tank upper part of the sludge tank scraper slot scraper kept turning constantly floating sludge scrape the sludge tank and gravity to the sludge tanks.
2, dissolved air system
Dissolved air system is mainly composed of dissolved gas cylinders, gas tank, air compressor, high pressure pump, dissolved gas cylinders is the most crucial part of the system, its role is to achieve full contact of the water and air to accelerate the air dissolved. It is an airtight pressure steel tanks, the internal design of the baffle sleeve, can accelerate the dispersion of the gas and water, mass transfer process, to improve the efficiency of dissolved air.
3 Pharmacy tank:
Round steel cans, used to dissolve the stored liquid, two dissolving tank, with a stirring device, the other two storage tanks for the pharmaceutical volume with the size of processing capacity and matching.
Three sewage treatment basic process
Workshop to wastewater
↓
Grille
↓
Sedimentation tanks
↓
Microfiltration machine
↓
Quenched and pool filter cake mixed with coal burning
PAC → dissolving tank → Chu gallipot → ↓ ↑
Sewage pump sludge filter press
↓ ↑
CXX series of super-
→ gas tank of high pressure gas source → dissolved gas cylinders → dissolved air flotation wastewater processor → sludge drying pool → high-grade cardboard
↑
High-pressure pump ← ↓
Aerobic rapid filter
↓
Precipitation to clarify pool
↓
Tanks
, Process
Waste water passes through the grille, block letter the larger suspended solids into the sedimentation tank, mixing, homogenizing the different nature of the wastewater, while heavy impurities settle down, to prevent fluctuations in water quality and ensure the stable operation of the wastewater treatment pool precipitate pool the waste water contains a certain amount of the loss of fiber, this part of the fine fiber is the main source of wastewater SS, through microfiltration machine recovery, not only recycled fiber, while the large lower suspended solids in the wastewater, as The process waste water flotation to reduce the processing load. Add coagulation drugs the PAC in the quenched and tempered pool wastewater to be preliminary separation, flocculation, sedimentation, and then by the sewage pumped to the flotation machine in the role of the flocculant PAM to form larger flocs. Since the capture of a large number of micro-bubbles and flocs greatly reduced the proportion of floating, water thoroughly to separate and flow away from the overflow into the aerobic rapid filter, where water further oxygen, and filtration and absorption through the filter to be get rid of the color and some sediment, and water into the sedimentation clarifiers, standing settlement to clarify that the final flow tanks reuse or discharge.
Float to the top of the sludge flotation machine, scrape the sludge tank and gravity to the sludge drying pool of sludge pumped into a sludge filter press, filter press, the formation of filter cake, outside Wan landfill, or mixed with coal burning. The filter press effluent back to the sedimentation tank. If you continue to invest in a cardboard machine, the sludge can also be directly used to produce high-grade cardboard, not only to eliminate the secondary pollution, you can also create great value for money.
Effectiveness and cost analysis of the five wastewater treatment
A petrochemical wastewater treatment effectiveness and cost analysis
With China's rapid economic development, people's living standards continued to improve, people have become increasingly demanding of the quality of life and living environment; rapid development consumes a lot of resources, resulting in a large number of waste, the threat to people quality of life of life, the development of economic pollution control, has become the consensus of modern society, the CPC Central Committee and State Council made a timely manner to the path of sustainable development, national development strategies to create a harmonious society, more pointed in the direction of the work for us. As the paper industry, cleaner production, waste water treatment has become a trend in the international arena, will also become a trend in the country, is the paper industry the bounden duty of.
Paper wastewater treatment technology and processing cost reasons, has been plagued by pulp and paper, making it a paper mill to have a heavy burden to design an efficient sewage treatment facilities has become a common paper industry and mechanical industry desire, my company in a timely manner with the international advanced sewage treatment technology, combined with the experience of many years wastewater treatment, design and development ZSF series of super-dissolved air flotation wastewater treatment equipment and technology, completely solve the problem of the paper mill wastewater treatment many paper mills use to prove the technical operations reliable, good water quality, processing cost, easy to operate, easy to master, by the use of home recognition and widespread praise.
CXX series of super-dissolved air flotation wastewater treatment equipment, application of new dissolved air mechanism, design new and unique system of dissolved gas, its excellent operating performance excellence in the treatment effect has been fully reflected in the industrial wastewater treatment.
Second, the structure and principles
Sewage processor CXX series of super-dissolved air flotation for the steel structure and its working principle is: the air pressure through the pump into the melting tank, under 0.5Mpa pressure is forced to dissolve in water, in the case of a sudden release, dissolved in The air in the water precipitates to form a float to close micro-bubbles rise slowly adsorbed on suspended solids density decreased to achieve the purpose of removal of SS and CODcr.
CXX series of super-dissolved air flotation wastewater processor structure from top to bottom consists of the following components:
A flotation machine:
Circular steel structure, is the main core of the water treatment machines. Internal release, uniform, sludge pipe, outlet pipe, sludge tanks, scraper and drive system. Release placed in the central location of the flotation machines, the key components to produce micro-bubbles and dissolved gas cylinders to the dissolved gas and water well mixed with the waste water in here, suddenly released, resulting in severe agitation and vortex to form a diameter of about 20-80um micro-bubbles, which is attached to the floc in the wastewater, thereby reducing the proportion of the rise of the floc, water thoroughly separated, both cloth the Cheng cone of structure, connected to the release on the main role is to separate the clean water evenly spread and the sludge in the tank, the outlet pipe are distributed in the tank the lower part, and through a vertical pipe connected to the tank the upper overflow, overflow export level adjustable handle, easy to adjust the tank water level, sludge pipe installed in the tank the bottom for the discharge of sediment, tank upper part of the sludge tank scraper slot scraper kept turning constantly floating sludge scrape the sludge tank and gravity to the sludge tanks.
2, dissolved air system
Dissolved air system is mainly composed of dissolved gas cylinders, gas tank, air compressor, high pressure pump, dissolved gas cylinders is the most crucial part of the system, its role is to achieve full contact of the water and air to accelerate the air dissolved. It is an airtight pressure steel tanks, the internal design of the baffle sleeve, can accelerate the dispersion of the gas and water, mass transfer process, to improve the efficiency of dissolved air.
3 Pharmacy tank:
Round steel cans, used to dissolve the stored liquid, two dissolving tank, with a stirring device, the other two storage tanks for the pharmaceutical volume with the size of processing capacity and matching.
Three sewage treatment basic process
Workshop to wastewater
↓
Grille
↓
Sedimentation tanks
↓
Microfiltration machine
↓
Quenched and pool filter cake mixed with coal burning
PAC → dissolving tank → Chu gallipot → ↓ ↑
Sewage pump sludge filter press
↓ ↑
CXX series of super-
→ gas tank of high pressure gas source → dissolved gas cylinders → dissolved air flotation wastewater processor → sludge drying pool → high-grade cardboard
↑
High-pressure pump ← ↓
Aerobic rapid filter
↓
Precipitation to clarify pool
↓
Tanks
, Process
Waste water passes through the grille, block letter the larger suspended solids into the sedimentation tank, mixing, homogenizing the different nature of the wastewater, while heavy impurities settle down, to prevent fluctuations in water quality and ensure the stable operation of the wastewater treatment pool precipitate pool the waste water contains a certain amount of the loss of fiber, this part of the fine fiber is the main source of wastewater SS, through microfiltration machine recovery, not only recycled fiber, while the large lower suspended solids in the wastewater, as The process waste water flotation to reduce the processing load. Add coagulation drugs the PAC in the quenched and tempered pool wastewater to be preliminary separation, flocculation, sedimentation, and then by the sewage pumped to the flotation machine in the role of the flocculant PAM to form larger flocs. Since the capture of a large number of micro-bubbles and flocs greatly reduced the proportion of floating, water thoroughly to separate and flow away from the overflow into the aerobic rapid filter, where water further oxygen, and filtration and absorption through the filter to be get rid of the color and some sediment, and water into the sedimentation clarifiers, standing settlement to clarify that the final flow tanks reuse or discharge.
Float to the top of the sludge flotation machine, scrape the sludge tank and gravity to the sludge drying pool of sludge pumped into a sludge filter press, filter press, the formation of filter cake, outside Wan landfill, or mixed with coal burning. The filter press effluent back to the sedimentation tank. If you continue to invest in a cardboard machine, the sludge can also be directly used to produce high-grade cardboard, not only to eliminate the secondary pollution, you can also create great value for money.
Effectiveness and cost analysis of the five wastewater treatment
A petrochemical wastewater treatment effectiveness and cost analysis
|
指标
|
单位
|
进水水质
|
出水水质
|
去除率
|
处理成本
|
|
油脂
|
Mg\1
|
5000
|
100
|
99％
|
0.22－0.3
|
2, deinking waste water treatment effectiveness and cost
|
指标
|
单位
|
进水水质
|
出水水质
|
去除率
|
处理成本
|
|
COD
|
Mg\1
|
800-1200
|
≤100
|
90%
|
0.30－0.42元\m3
|
|
SS
|
Mg\1
|
1200-1800
|
≤100
|
93%
|
3, paper machine white water treatment effectiveness and cost analysis
|
指标
|
单位
|
进水水质
|
出水水质
|
去除率
|
处理成本
|
|
COD
|
Mg\1
|
500-1200
|
≤100
|
88％
|
0.22－0.30元\m3
|
|
SS
|
Mg\1
|
800-1500
|
≤100
|
95％
|
4, the middle of the chemical pulping wastewater treatment effectiveness and cost analysis
|
指标
|
单位
|
进水水质
|
出水水质
|
去除率
|
处理成本
|
|
COD
|
Mg\1
|
1500－3000
|
≤100
|
87％
|
0.50－0.80元\m3
|
|
SS
|
Mg\1
|
1500－2600
|
≤100
|
95％
|
5, the wastewater production of corrugated cardboard waste water treatment effectiveness and cost analysis
|
指标
|
单位
|
进水水质
|
出水水质
|
去除率
|
处理成本
|
|
COD
|
Mg\1
|
1200－2000
|
≤100
|
93％
|
0.20－0.40元\m3
|
|
SS
|
Mg\1
|
1000－2000
|
≤100
|
93％
|
6, CXX series the advantages of the super-dissolved air flotation machine
Superior performance, the treatment effect is stable and reliable, able to discharge standards, or reused in production.
2, easy installation, simple operation, easy to master.
3, the scum at high concentrations, and easy to dehydration, less sludge.
4, less floor space, the end of the civil engineering costs, investment savings and quick.
5, technologically advanced design, low processing costs.
Seven, the main technical parameters:
Superior performance, the treatment effect is stable and reliable, able to discharge standards, or reused in production.
2, easy installation, simple operation, easy to master.
3, the scum at high concentrations, and easy to dehydration, less sludge.
4, less floor space, the end of the civil engineering costs, investment savings and quick.
5, technologically advanced design, low processing costs.
Seven, the main technical parameters:
|
规格型号
|
处理能力
(m3\h)
|
罐体直径
（mm）
|
罐体高度
（mm）
|
|
CXX -10
|
10
|
2000
|
2500
|
|
CXX -20
|
20
|
2400
|
2500
|
|
CXX -30
|
30
|
2400
|
3750
|
|
CXX -50
|
50
|
2800
|
4000
|
|
CXX -75
|
75
|
3400
|
4250
|
|
CXX -100
|
100
|
4000
|
5000
|
|
CXX -150
|
150
|
4800
|
5000
|
|
CXX -200
|
200
|
5600
|
5500
|
|
CXX -250
|
250
|
6000
|
5500
|
Eight, 100Mm ³ / h swirl dissolved air flotation machine technical parameters:
|
项
目
型
号
|
处理能力m3/h
|
溶气水量m3/h
|
主 电 机 功 率
Kw
|
刮
沬
机
功
率
Kw
|
空
压
机
功
率
Kw
|
溶气罐
规格
mm
|
外形尺寸
(长×宽×高)
mm
|
|
|
CXX-100
|
90-100
|
30-35
|
18.5
|
0.75
|
4
|
∮800×2000
|
宽：4000×5000
|
9, after-sales service
Where to buy our products, the company sent engineers and technicians guiding installation and commissioning, and can undertake the process design and equipment installation.
X. Accessories:
1, product certification
Packing List: (1) machine (2) a distribution cabinet
3, manual
Where to buy our products, the company sent engineers and technicians guiding installation and commissioning, and can undertake the process design and equipment installation.
X. Accessories:
1, product certification
Packing List: (1) machine (2) a distribution cabinet
3, manual
