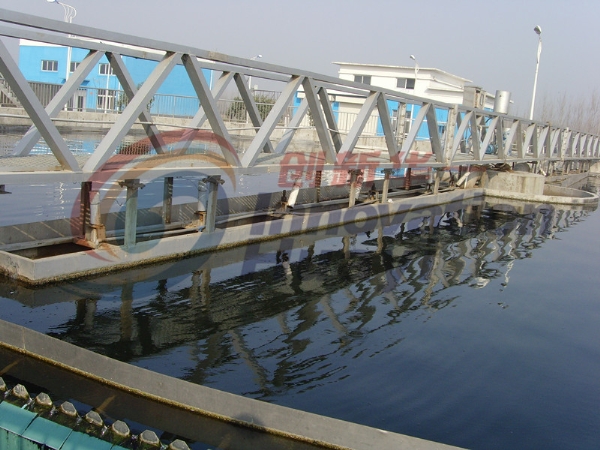

Type CXGJ Center Drive Mud Scraper, is of a suspended mud equipment, apply to the water treatment works in a circular primary sedimentation tank, secondary settling tank, concentration tank exclude sludge.
Second, the structural characteristics
The mud scraper motor and deceleration devices, Guo Niu moment protective structure, spindle, scraping arm, scraper the end of the underwater bearings, work bridges part.
Ø sedimentation tanks, concrete or steel structure, the bottom slightly conical bottom central mud mud bucket external tube.
Ø working bridge for concrete or steel, this device does not include the cell body and the work of the bridge, the users themselves, I can plant agent design and manufacture of the steel structure of the cell body and bridge, supply the user.
The Ø CXGJ scraper machines, consists of vertical axis of the rake frame, drive and over torque safety devices.
Ø rake cross frame by two large rake and two small rake is slightly conical bottom parallel.
Ø rake frame with vertical axis fixed crosshead connection, vertical axis of the bearing to a combination of heart and thrust bearings with grease lubrication. Underwater plain bearings, nylon lining, composition, pressure clean water lubrication.
Ø vertical axis of the lower end is inserted into the mud bucket, under the shaft end fastening a scraper knife to scrape the mud fighting in the mud of plot, so that uniform discharge.
Ø drives for three vertical cycloid reducer to connect the jaw associated with the device with the vertical axis. The reducer base unit fixed bridge work.
Ø torque safety devices, safety shear pin assembly in the chip embedded coupling, when running in case of torque situation, they cut off the shear pin to protect the machinery and equipment from damage.
Third, the scope
Scraper mud scraper circular sedimentation tanks for water and sewage treatment plant. http://www.chuangxinhuayi.cn
