I. Introduction
Driving style suction machine for sewage treatment plants, advection precipitation of the water plant will be deposited in the bottom sludge blew into the pump suction port, through the pump,
Side walk edge suction, and then the sludge discharged outside the pool, you can lift the pain to clean up the bottom sludge.
Second, the main features of
1) The machine adopts the truss structure to greatly reduce the weight than the traditional structure, the choice of the processing of hot galvanization process to ensure that the five years does not rust, 304 stainless steel parts in contact with water, life greatly lengthened.
2) maintaining a small amount, with power small running costs low; the pump selection is reasonable, stable and reliable.
3) a new type of drive mechanism, to avoid both ends of the walk error.
4) walking round the drum to ensure that the service life.
Third, the structure and principle
Traffic dredger by a bridge, drive running gear, three suction system, four skimming devices (optional), five control cabinet, the composition of the six siphon generator (siphon method). Inclined tube sedimentation tank, you need to install the bottom suction frame and suction hanger.

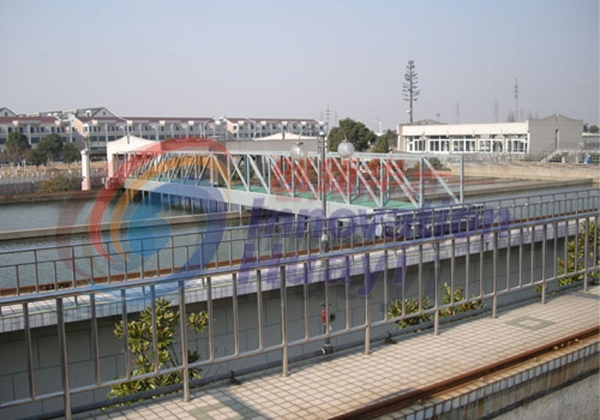

The equipment consists of a four-point support walking beam across the advection sedimentation pond, bilateral drive, on both sides of the pool, laying rails, one end of the run from the pool to the other side of the pond side walk side Suction hit the stroke control, and go back to walking, The return suction, to complete a cycle.
Fourth, the installation
(A) Note
Driving style suction machine for sewage treatment plants, advection precipitation of the water plant will be deposited in the bottom sludge blew into the pump suction port, through the pump,
Side walk edge suction, and then the sludge discharged outside the pool, you can lift the pain to clean up the bottom sludge.
Second, the main features of
1) The machine adopts the truss structure to greatly reduce the weight than the traditional structure, the choice of the processing of hot galvanization process to ensure that the five years does not rust, 304 stainless steel parts in contact with water, life greatly lengthened.
2) maintaining a small amount, with power small running costs low; the pump selection is reasonable, stable and reliable.
3) a new type of drive mechanism, to avoid both ends of the walk error.
4) walking round the drum to ensure that the service life.
Third, the structure and principle
Traffic dredger by a bridge, drive running gear, three suction system, four skimming devices (optional), five control cabinet, the composition of the six siphon generator (siphon method). Inclined tube sedimentation tank, you need to install the bottom suction frame and suction hanger.
The equipment consists of a four-point support walking beam across the advection sedimentation pond, bilateral drive, on both sides of the pool, laying rails, one end of the run from the pool to the other side of the pond side walk side Suction hit the stroke control, and go back to walking, The return suction, to complete a cycle.
Fourth, the installation
(A) Note
In order to facilitate the normal operation of the suction machine, install the necessary four walking round in two parallel edge of the rectangle. Rail steel must be in the rectangular edge of the two in the same horizontal plane.
(B) the installation steps
Reserved in the stratosphere pool on both sides of the wall top rail steel embedded iron, a one meter, each embedded iron production of bolts and clips at both ends, so that fastened rail.
2, the device hanging to the advection Ikegami, four running wheel placed on rails on the baseline leveling, checking the installation size.
3, slide the cable and electrical installation, crane cable rings incoming wire rope, wire rope taut, in two of the column. Wear then the main cable, power debugging walking and installation of the trip switch and touch the block, back to the parking spaces to install anti-overrun baffle.
4, test, empty running after the installation uninterrupted operation at least eight hours, always check the traffic out rail, once discovered in a timely manner to stop treatment, to prevent equipment from falling into the pool.
5, the suction pump is installed, the suction pump is installed at work on the bridge.
6, the suction pipe and mud tube pipe installation, down from the entrance to the suction pump since the installation of the pipe and the suction mouth, the suction mouth to the bottom a distance of 10 ~~ 20mm. Suction pump summary to a clay pipe discharged into the sludge groove in the lateral advection pool.
7, connected to suction pump power.
, Water pump test, the test run, the pool water, the water level requirements higher than the suction pump Pump 30mm, edge into the water's edge to a pump, the observed mud mouth water.
(B) the installation steps
Reserved in the stratosphere pool on both sides of the wall top rail steel embedded iron, a one meter, each embedded iron production of bolts and clips at both ends, so that fastened rail.
2, the device hanging to the advection Ikegami, four running wheel placed on rails on the baseline leveling, checking the installation size.
3, slide the cable and electrical installation, crane cable rings incoming wire rope, wire rope taut, in two of the column. Wear then the main cable, power debugging walking and installation of the trip switch and touch the block, back to the parking spaces to install anti-overrun baffle.
4, test, empty running after the installation uninterrupted operation at least eight hours, always check the traffic out rail, once discovered in a timely manner to stop treatment, to prevent equipment from falling into the pool.
5, the suction pump is installed, the suction pump is installed at work on the bridge.
6, the suction pipe and mud tube pipe installation, down from the entrance to the suction pump since the installation of the pipe and the suction mouth, the suction mouth to the bottom a distance of 10 ~~ 20mm. Suction pump summary to a clay pipe discharged into the sludge groove in the lateral advection pool.
7, connected to suction pump power.
, Water pump test, the test run, the pool water, the water level requirements higher than the suction pump Pump 30mm, edge into the water's edge to a pump, the observed mud mouth water.
