First, an overview

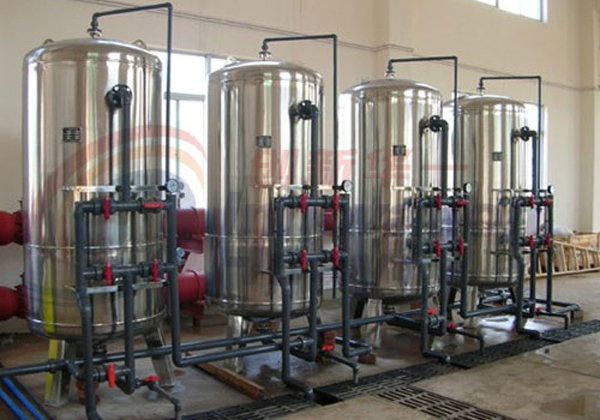

The activated carbon filter pressure vessels are within the pressure vessel filled with coarse quartz sand cushion and high quality activated carbon.
Water pretreatment system, activated carbon filter can absorb the chlorine pre-filter can not be removed to prevent the level after reverse osmosis membranes subject to oxidative degradation, but also adsorption of small organic molecules and other polluting substances, the former level leak over more obvious role in the adsorption of the smell of water, colloidal pigment, heavy metal ions, but also to reduce the COD. Can further reduce the value of the RO feed SDI, to ensure that the SDI <5, TOC <2.Oppm,.
Activated carbon filters work is done through the carbon bed. Up the charcoal bed of activated carbon particles have a very large number of micropores and a huge surface area, has a strong physical adsorption. Water through the carbon bed of organic pollutants in water by activated carbon to adsorption. In addition, the non-crystalline part of the surface of activated carbon, some oxygen-containing tube group, and organic pollutants in water through the carbon bed activated carbon adsorption. The activated carbon filter is a more commonly used in water treatment equipment, as the former water treatment desalination system level device can effectively ensure the life and improve water quality, prevent pollution, especially to prevent the stage reverse osmosis membrane, ion exchange resins, etc. free I oxygen poisoning pollution.
Activated carbon filters for water supply and drainage treatment system to remove organic compounds from water, color and chlorine.
Two QDK-G-type activated carbon filter Dimensions
The activated carbon filter pressure vessels are within the pressure vessel filled with coarse quartz sand cushion and high quality activated carbon.
Water pretreatment system, activated carbon filter can absorb the chlorine pre-filter can not be removed to prevent the level after reverse osmosis membranes subject to oxidative degradation, but also adsorption of small organic molecules and other polluting substances, the former level leak over more obvious role in the adsorption of the smell of water, colloidal pigment, heavy metal ions, but also to reduce the COD. Can further reduce the value of the RO feed SDI, to ensure that the SDI <5, TOC <2.Oppm,.
Activated carbon filters work is done through the carbon bed. Up the charcoal bed of activated carbon particles have a very large number of micropores and a huge surface area, has a strong physical adsorption. Water through the carbon bed of organic pollutants in water by activated carbon to adsorption. In addition, the non-crystalline part of the surface of activated carbon, some oxygen-containing tube group, and organic pollutants in water through the carbon bed activated carbon adsorption. The activated carbon filter is a more commonly used in water treatment equipment, as the former water treatment desalination system level device can effectively ensure the life and improve water quality, prevent pollution, especially to prevent the stage reverse osmosis membrane, ion exchange resins, etc. free I oxygen poisoning pollution.
Activated carbon filters for water supply and drainage treatment system to remove organic compounds from water, color and chlorine.
Two QDK-G-type activated carbon filter Dimensions
|
型号
|
规格
（mm） |
max出水量（m3/h）
|
工作温度
（℃） |
过滤面积（m2）
|
滤速
（m/h） |
滤料层高（mm）
|
外型尺寸（mm）法兰外径×高
|
净重（kg）
|
|
|
PVC
|
PVC FRP
|
||||||||
|
CXJG-30
|
φ300
|
2～3
|
4～50
|
0.07
|
8～10
|
1200
|
φ430×2102
|
64
|
75
|
|
CXJG -40
|
φ400
|
3 ～5
|
4～50
|
0.125
|
8～10
|
1200
|
φ535×2720
|
138
|
152
|
|
CXJG -50
|
φ500
|
4～6
|
4～50
|
0.196
|
8～10
|
1350
|
φ635×3160
|
190
|
211
|
|
CXJG -60
|
φ600
|
5～7
|
4～50
|
0.283
|
8～10
|
1400
|
φ750×3265
|
262
|
298
|
|
CXJG -80
|
φ800
|
6～9
|
4～50
|
0.502
|
8～10
|
1400
|
φ980×3335
|
|
352
|
|
CXJG -100
|
φ1000
|
8～10
|
4～50
|
0.785
|
8～10
|
1500
|
φ1220×3600
|
|
600
|
Note: a maximum operating pressure of 0.6MPa.
2, quartz sand and activated carbon used in the device by the user
